Sextant - Why it Works and How to Use it

Homepage
Video's, How To's, etc.

video

Intro

We usually think of a sextant for marine navigation. But first and foremost it is a tool for measure angles between two sightline.

It does this with a series of mirror, two images are set side by side. In this case we can measure the angle between the base and top of a tree.

Sightlines and Angles

A sextant measures angles between sightline by viewing those sightline through a series of mirror. It then adjusting the angle of the sightline by changing the angles of the mirrors.

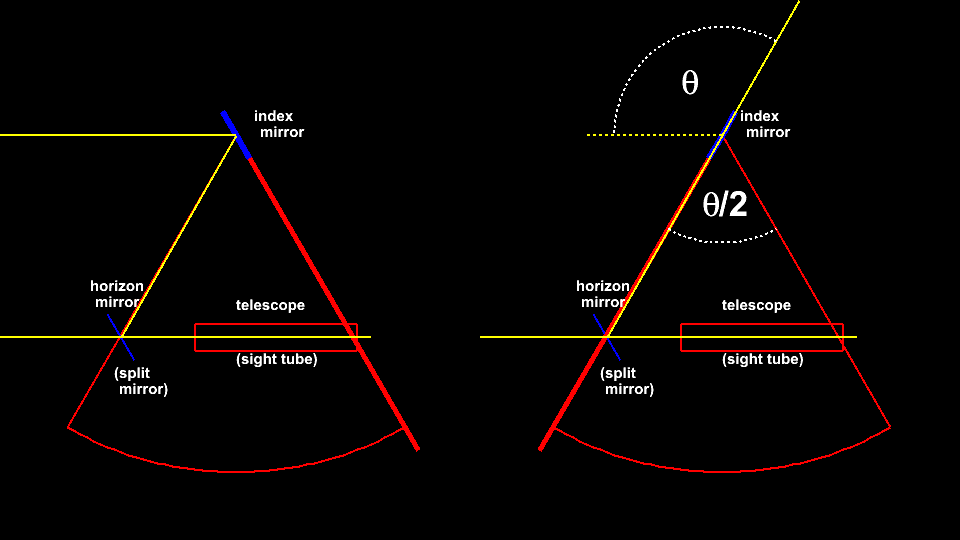

The horizon mirror is infront of only half your view. So the view to the left is straight. The view to the right is towards the index mirror. What you see in the index mirror depends upon the angle of that mirror.

One of the curious features of a sextant is that if you change the angle of the index mirror by 10-degrees, you change your view by 20-degrees. This is because changing the angle of the mirror changes both the angle of incident and reflections, giving it a doubling effect.

Measuring the Sun's "Elevation"

To measure the Sun's "elevation" is straight forward. The elevation is the angle between the sun and the horizon. To the left of the split mirror one can see the horizon. To the right, through a sun filter, on can see the sun. By adjusting the angle of the index mirror (by moving the arm) we can align.

-

Calculating Latitude from Elevation

On the equinox

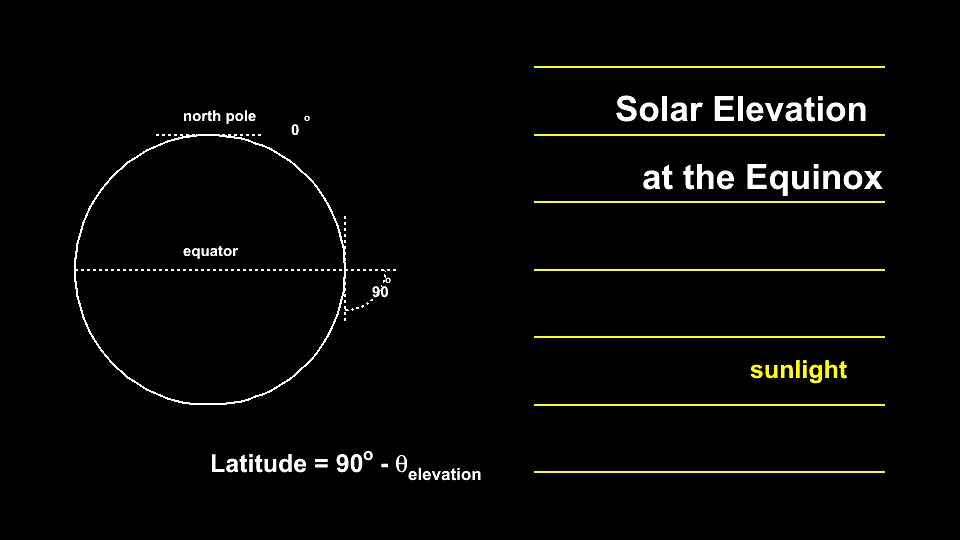

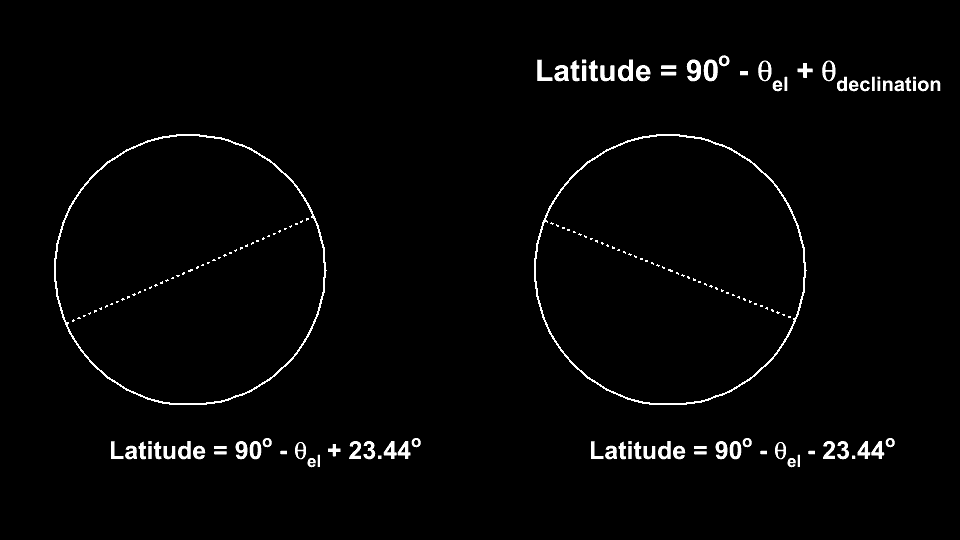

If we took our sighting on the spring or fall equinox, and the sun was directly overhead, we would know we were on the equator. If it was on the horizon, we would be at a pole. So the latitude is 90-deg minus the elevation we measured.

Summer, Winter or any day

Of course it is not always first day of spring or fall. On the winter solstice the sun is low in the sky and we would add 23 deg.

On the summer solstice it is high and we subtract 23-deg.

This correction, which changes every day, is called declination - and you can find in tables.

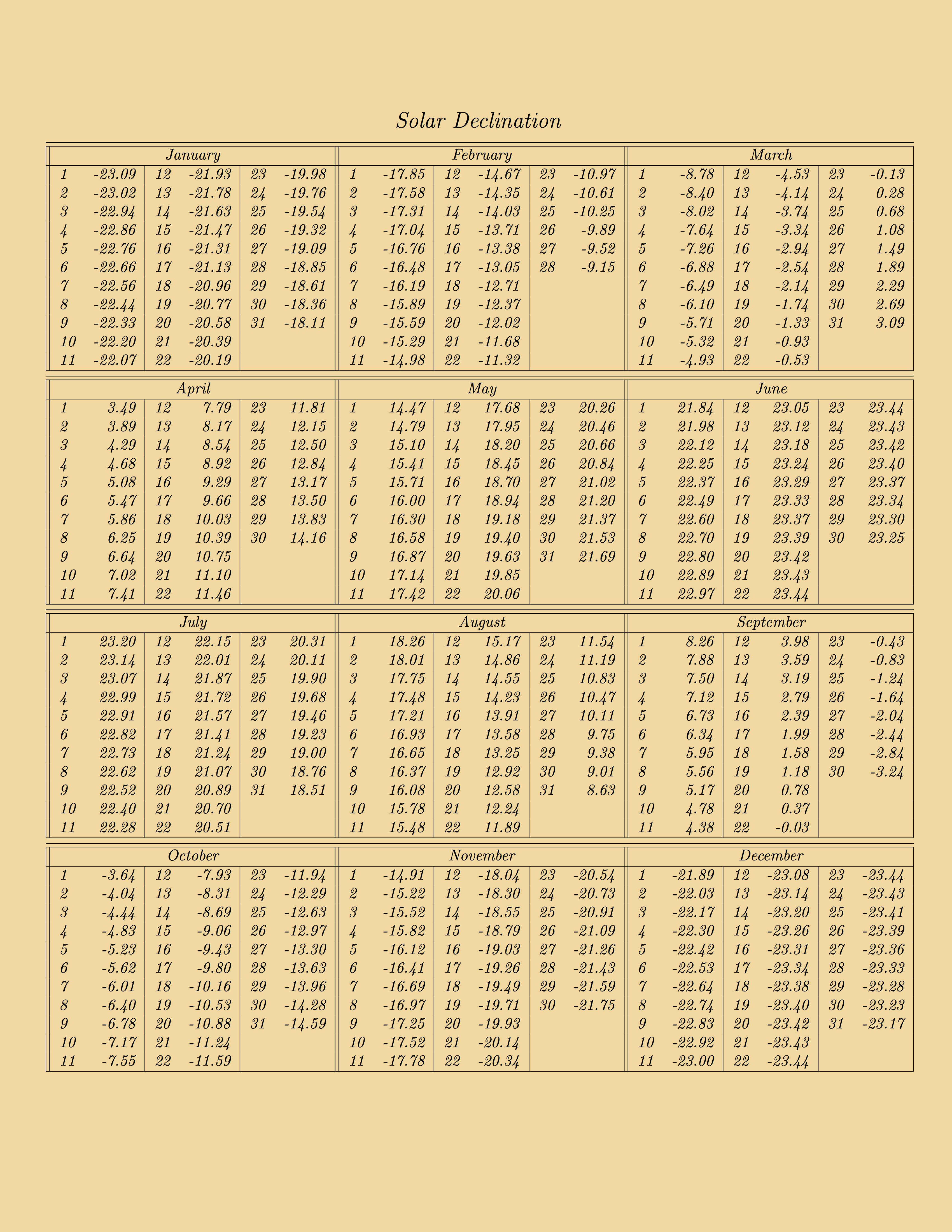

Solar Declination Table

(click here to download .pdf)

False Horizon

There are times when you can not clearly see the true horizon.

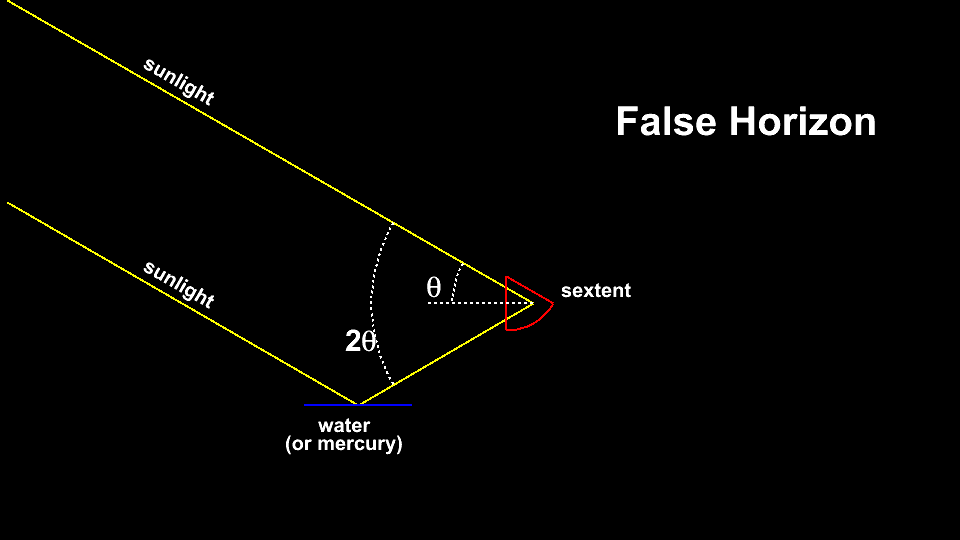

Instead of a horizon, you can use the surface of a pool of water, which will always horizontal. You look down into the water at the same angle you look up into the sky to see the Sun.

Now, you will see two images of the sun. The left one is a reflection off the pool of water. The right one through the sextant. The angle between them is twice the solar elevation.
